This is a concise introduction to pyathena, aimed mainly at new users.

Start by importing the necessary modules.

To use pyathena, add its directory to the PYTHONPATH environment variable in .bashrc or .bash_profile

export PYTHONPATH=/path/to/directory:$PYTHONPATH

Alternatively, you can dynamically add the path in your script or notebook.

import sys
sys.path.insert(0, '..')
import pyathena as pa

import numpy as np
import matplotlib as mpl
import matplotlib.pyplot as plt
import pandas as pd
import xarray as xr

LoadSim class#

The LoadSim class is the primary interface for handling Athena/Athena++ simulation data.

Use the help() function to access documentation for the class:

help(pa.LoadSim)

Pro Tip: Use class_or_func_name?, class_or_func_name??, help(class_or_func_name), or Shift+Tab in an interactive Python environment to view documentation, summaries, or source code.

Initialization#

Simulation Directory: LoadSim uses the basedir parameter to locate all output files (hst, hdf5, vtk, etc.).
Save Directory: The savdir parameter defines the directory for saving pickles and figures. If unspecified, it defaults to basedir.
Logger: A logger is attached to the LoadSim instance print out log messages. The verbosity can be adjusted by setting verbose to True (equivalent "INFO") or False (equivalent "WARNING") or different levels of logging "DEBUG", "INFO", "WARNING", "ERROR" (case insensitive). The default is set to False.
Metadata : During the initialization, FindFiles class is initialized within LoadSim and it tries to find the athinput file and (e.g., athinput.runtime) or a file (e.g., out.txt) where standard output is redirected to. It then reads in simulations parameters and code configuration and saves results to a dictionary of dictionaries, par, containing all information. Other important metadata include information about the computational domain (domain), the date and time when code was configured (config_time).
Finding files : Find output files based on the information available from par. The find_files() method can be called to find file names (files) and lists of snapshot numbers (nums*) again. File formats include
- Athena-TIGRESS : hst, sn, zprof, vtk, starpar_vtk, rst, timeit
- TIGRIS : hst, sn, zprof, hdf5, rst, loop_time/task_time

basedir = '/projects/EOSTRIKE/TIGRESS_data_release/R8_2pc/'
s = pa.LoadSim(basedir, verbose=True)

[LoadSim-INFO] basedir: /projects/EOSTRIKE/TIGRESS_data_release/R8_2pc
[LoadSim-INFO] savdir: /projects/EOSTRIKE/TIGRESS_data_release/R8_2pc
[LoadSim-INFO] load_method: xarray
[FindFiles-INFO] athinput: /projects/EOSTRIKE/TIGRESS_data_release/R8_2pc/input/MHD/R8_2pc.par
[FindFiles-INFO] athena_variant: Athena
[FindFiles-INFO] problem_id: R8_2pc_rst
[FindFiles-INFO] vtk (joined): /projects/EOSTRIKE/TIGRESS_data_release/R8_2pc/0290/MHD nums: 290-390
[FindFiles-WARNING] starpar files not found in /projects/EOSTRIKE/TIGRESS_data_release/R8_2pc.
[FindFiles-INFO] timeit.txt not found.
[FindFiles-INFO] hst: /projects/EOSTRIKE/TIGRESS_data_release/R8_2pc/history/MHD/R8_2pc.hst
[FindFiles-WARNING] sn file not found in {0:s}, but <feedback>/iSN=5
[FindFiles-WARNING] zprof files not found in /projects/EOSTRIKE/TIGRESS_data_release/R8_2pc
[FindFiles-WARNING] rst files in out_fmt but not found.

# files in MHD or MHD_PI were found and stored
print(s.files["vtk"][0])
print(s.files["vtk_pi"][0])

/projects/EOSTRIKE/TIGRESS_data_release/R8_2pc/0290/MHD/R8_2pc.0290.vtk
/projects/EOSTRIKE/TIGRESS_data_release/R8_2pc/0290/MHD_PI/R8_2pc.0290.vtk

NOTE: temperature conversion is not properly handled in the pyathena for the data release VTK file#

need to manually update the function to calculate temperature.

from pyathena.classic.cooling import coolftn
def _T(d, u):
    T1 = d['pressure']/d['density']*(u.velocity**2*ac.m_p/ac.k_B).cgs.value
    T1data = T1.data
    T1.data = coolftn().get_temp(T1data)
    return T1
s.dfi["T"]["field_dep"] = {'pressure','density'}
s.dfi["T"]["func"] = _T

Attributes#

Print some (read-only) attributes of a LoadSim instance.

s.basedir

'/projects/EOSTRIKE/TIGRESS_data_release/R8_2pc'

s.basename

'R8_2pc'

s.problem_id

'R8_2pc_rst'

domain contains information about simulation domain

Nx: Number of cells
le/re: left/right edge
Lx: box size
dx: cell size

s.domain

{'Nx': array([ 512,  512, 3584]),
 'ndim': 3,
 'le': array([ -512,  -512, -3584]),
 're': array([ 512,  512, 3584]),
 'Lx': array([1024, 1024, 7168]),
 'dx': array([2., 2., 2.]),
 'center': array([0., 0., 0.]),
 'time': None}

Date and time when the code is compiled

par contains all input parameters and meta information

s.par.keys()

dict_keys(['job', 'log', 'output1', 'output2', 'output3', 'output4', 'output5', 'output6', 'time', 'domain1', 'problem', 'feedback', 'configure'])

s.par['output2']

{'out_fmt': 'vtk',
 'out': 'prim',
 'dt': 1.0,
 'time': 322.0,
 'num': 322,
 'level': -1,
 'domain': -1,
 'id': 'out2'}

s.par['time']

{'grav_no': 1,
 'cour_no': 0.3,
 'nlim': -1,
 'tlim': 700.0,
 'time': 321.4286,
 'nstep': 124359}

s.par['problem']

{'gamma': 1.66666667,
 'surf': 12.0,
 'sz0': 10.0,
 'vturb': 10.0,
 'beta': 10,
 'Omega': 0.028,
 'qshear': 1.0,
 'SurfS': 42.0,
 'zstar': 245.0,
 'rhodm': 0.0064,
 'R0': 8000.0,
 'Sigma_SFR': 0.005,
 'rho_crit': 1.0}

Other attributes.

s.savdir

'/projects/EOSTRIKE/TIGRESS_data_release/R8_2pc'

s.load_method

'xarray'

Finding files#

NOTE: If find_files() did not succeed in finding output files under basedir, check if the glob patterns s.ff.patterns are set appropriately. Update it and try again. For example, the history dump is found using the glob patterns /path_to_basedir/id0/*.hst first. If it fails, it searches again with /path_to_basedir/hst/*.hst, and then with /path_to_basedir/*.hst

s.files.keys()

dict_keys(['athinput', 'vtk', 'vtk_pi', 'hst'])

s.files['vtk'][0], s.files['vtk'][-1]

('/projects/EOSTRIKE/TIGRESS_data_release/R8_2pc/0290/MHD/R8_2pc.0290.vtk',
 '/projects/EOSTRIKE/TIGRESS_data_release/R8_2pc/0390/MHD/R8_2pc.0390.vtk')

s.nums[0], s.nums[-1]

(290, 390)

type(s.ff)

pyathena.find_files.FindFiles

s.ff.patterns['hst']

[('history', 'MHD', '*.hst'), ('id0', '*.hst'), ('hst', '*.hst'), ('*.hst',)]

s.ff.patterns['vtk']

[('????', 'MHD', '*.????.vtk'), ('vtk', '*.????.vtk'), ('*.????.vtk',)]

Units#

Simulations run with Athena-TIGRESS/TIGRIS use the following code units

TIGRESS-classic:
- Mean particle mass per H: \(\mu_{\rm H} = 1.4271\)
- \(1\;{code\_density} \leftrightarrow n_{\rm H} = 1 {\rm cm}^{-3}\)
- Length : 1 pc
- Velocity : 1 km/s
TIGRESS-NCR:
- Mean particle mass per H: \(\mu_{\rm H} = 1.4\)
- \(1\;{code\_density} \leftrightarrow n_{\rm H} = 1 {\rm cm}^{-3}\)
- Length : 1 pc
- Velocity : 1 km/s
TIGRIS with "ism" units:
- Mean particle mass per H: \(\mu_{\rm H} = 1.4\)
- \(1.4\;{code\_density} \leftrightarrow \rho = 1.4 m_{\rm H}\;{\rm cm}^{-3} \leftrightarrow n_{\rm H} = 1 {\rm cm}^{-3}\)
- Length : 1 pc
- Velocity : 1 km/s

u = s.u
# or
# u = pa.Units(kind='LV', muH=1.4)

Print code units (astropy Quantity)

type(s.u.time)

astropy.units.quantity.Quantity

s.u.time, s.u.mass, s.u.density, s.u.length, s.u.velocity, s.u.muH,

(<Quantity 3.08567758e+13 s>,
 <Quantity 0.03529472 solMass>,
 <Quantity 2.38871334e-24 g / cm3>,
 <Quantity 1. pc>,
 <Quantity 1. km / s>,
 1.4271)

s.u.energy, s.u.energy_density, s.u.momentum, s.u.momentum_flux

(<Quantity 7.01803729e+41 erg>,
 <Quantity 2.38871334e-14 erg / cm3>,
 <Quantity 0.03529472 km solMass / s>,
 <Quantity 0.03609634 km solMass / (s yr kpc2)>)

Commonly used astronomical constants and units (plain numbers). Multiply them to convert quantities in code units to one in physical units. For example,

(code mass)*u.Msun = mass in Msun
(code time)*u.Myr = time in Myr
(code luminosity)*u.Lsun = luminosity in Lsun
(code pressure)*u.pok = P/k_B in cm^-3 K

s.u.Msun, s.u.Myr, s.u.Lsun, s.u.pc,  s.u.kms, s.u.pok

(0.03529472163499891,
9777922216807893,
9414602654995275e-06,
0,
0,
01380324473618)

VTK dump#

print(s.nums[0], s.nums[-1], len(s.nums)) # vtk file numbers in the directory

290 390 11

# use ivtk (index of pre-loaded vtk files; under MHD folder) rather than num to load files.
ds = s.load_vtk(ivtk=0)

[LoadSim-INFO] [load_vtk]: R8_2pc.0290.vtk. Time: 290.000200

ds.domain

{'all_grid_equal': True,
 'ngrid': 1,
 'le': array([-512., -512., -512.], dtype=float32),
 're': array([512., 512., 512.], dtype=float32),
 'dx': array([2., 2., 2.], dtype=float32),
 'Lx': array([1024., 1024., 1024.], dtype=float32),
 'center': array([0., 0., 0.], dtype=float32),
 'Nx': array([512, 512, 512]),
 'ndim': 3,
 'time': 290.0002}

# manual load (e.g., for MHD_PI file)
from pyathena.io.read_vtk import AthenaDataSet
ds = AthenaDataSet(s.files["vtk_pi"][0], units=s.u, dfi=s.dfi)

# note that the vertical extent for this output is bigger (original)
ds.domain

{'all_grid_equal': True,
 'ngrid': 1,
 'le': array([ -512.,  -512., -3584.], dtype=float32),
 're': array([ 512.,  512., 3584.], dtype=float32),
 'dx': array([2., 2., 2.], dtype=float32),
 'Lx': array([1024., 1024., 7168.], dtype=float32),
 'center': array([0., 0., 0.], dtype=float32),
 'Nx': array([ 512,  512, 3584]),
 'ndim': 3,
 'time': 290.0002}

Note that domain['time'] is updated after reading loading a vtk file.

Field names#

The field_list contains all available variable names in vtk file, representing the raw data. The derived_field_list includes variables that are calculated based on those in the field_list, often expressed in more convenient units. Usually, fields in derived_field_list are in more convenient units. When in doubt, it is recommended to use variables from the field_list and calculate derived quantities yourself.

print(ds.field_list)

['density', 'velocity', 'pressure', 'cell_centered_B', 'specific_scalar[0]']

print(ds.derived_field_list)

['rho', 'nH', 'pok', 'pok_trbz', 'r', 'vmag', 'vr', 'vx', 'vy', 'vz', 'cs', 'csound', 'Mr', 'Mr_abs', 'rhovr2ok', 'vAmag', 'vAx', 'Bx', 'vAy', 'By', 'vAz', 'Bz', 'Bmag', 'pok_mag', 'T', 'cool_rate_cgs', 'heat_rate_cgs', 'net_cool_rate', 'Lambda_cool', 'nHLambda_cool', 'nHLambda_cool_net', 'Gamma_heat', 't_cool', 'j_X']

ds.dirname, ds.ext

('/projects/EOSTRIKE/TIGRESS_data_release/R8_2pc/0290/MHD_PI', 'vtk')

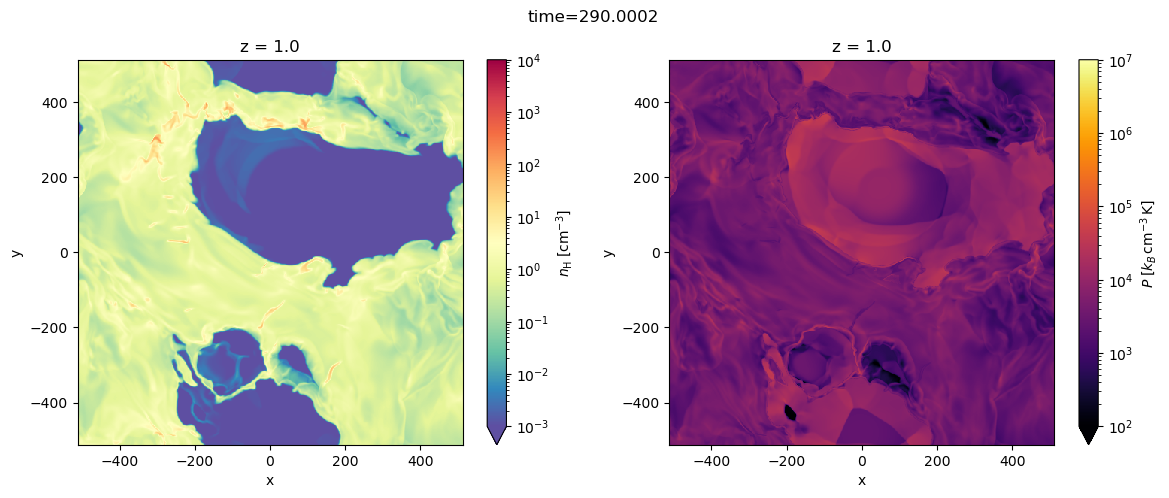

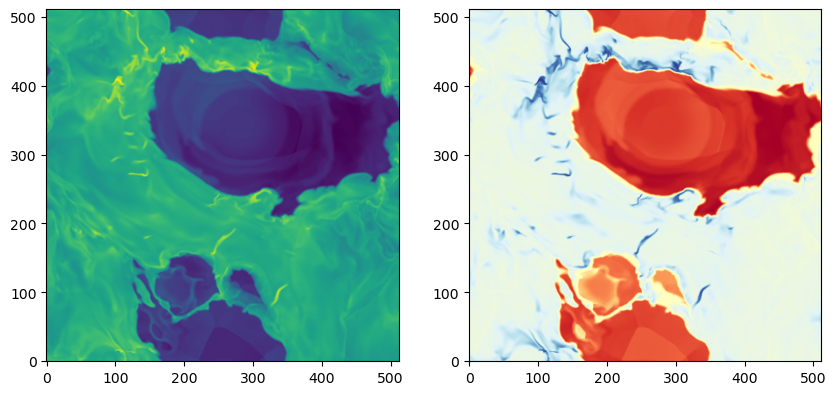

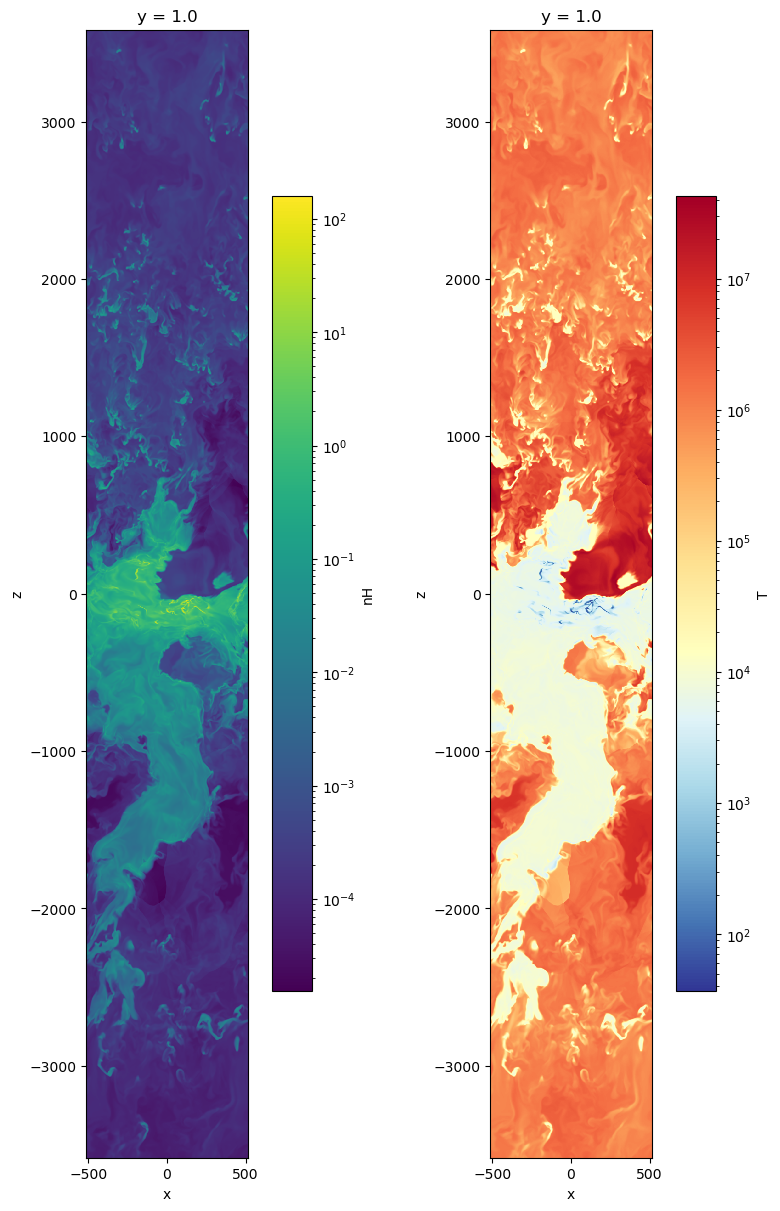

2d histogram#

lognH = np.log10(dat['nH'].data.flatten())
logT = np.log10(dat['T'].data.flatten())
plt.hexbin(lognH, logT, mincnt=1, norm=mpl.colors.LogNorm())
plt.xlabel(r'$\log_{10}\,n_{\rm H}$')
plt.ylabel(r'$\log_{10}\,T$')

fig, ax = plt.subplots(1, 1, figsize=(6.5, 5))
d = ds.get_field('rho')
conv_Sigma = (1.0*au.g/au.cm**2).to('Msun pc-2').value
dz_cgs = ds.domain['dx'][2]*u.length.cgs.value

(d['rho'].sum(dim='z')*dz_cgs*conv_Sigma).plot.imshow(ax=ax,
    cmap='pink_r', norm=mpl.colors.LogNorm(0.1, 2e2),
    cbar_kwargs=dict(label=r'$\Sigma_{\rm gas}\;[M_{\odot}\,{\rm pc}^{-2}]$'))
ax.set_aspect('equal')

History dump#

# Read raw hst dump
h = pa.read_hst(s.files['hst']) # returns a pandas DataFrame object
h.columns

h.head()

Plot

timestep size dt_mhd (code unit)
(total gas mass)/(volume of box) (code units)
\(\Sigma_{\rm SFR,40 Myr}\) (Msun/yr/kpc^2)

ax = h.plot('time', y=['dt','mass', 'sfr40'])
ax.set_yscale('log')
